SolarAide recently completed a solar battery installation in Clyde, Victoria, adding a high-capacity 41.93kWh FOX ESS battery storage system to a residential property.
The project involved the installation of a new on-grid battery system designed to give the household significantly more control over how its electricity is stored and used throughout the day.
With almost 42kWh of usable battery capacity, the system provides substantial storage for excess solar energy while helping reduce reliance on grid electricity during evening periods and other times when household demand is high.
Project Overview
This residential project was completed in Clyde, Victoria 3978, for a multi-storey home.
The installation was a new battery system and the property’s first battery installation, rather than an expansion of an existing battery bank.
SolarAide designed the system around a large FOX ESS battery configuration paired with a new FOX ESS hybrid inverter, creating an integrated battery setup capable of supporting the home’s ongoing energy requirements.
Project Specifications
- Location: Clyde, Victoria 3978
- Project type: Residential battery installation
- Property type: Multi-storey residential property
- Installation type: New battery system
- Battery location: Indoor installation
- Grid connection: On-grid
- Total usable battery capacity: 41.93kWh
- Total nominal battery capacity: 41.93kWh
- Battery configuration: 9 battery units
- VPP compatible: Yes
- Installation completed: December 2025
41.93kWh FOX ESS Battery Storage System
At the centre of this Solar Battery Installation Clyde project is a FOX ESS EQ4800-L9 battery system configured with nine battery units.
Together, the battery modules provide approximately 41.93kWh of usable storage capacity.
A system of this size provides considerably more storage than a typical small residential battery, making it suitable for homes with higher electricity consumption, larger solar production potential, or homeowners looking to store significantly more of their generated energy.
The installed battery is also Virtual Power Plant (VPP) compatible, providing additional flexibility should the homeowner choose to participate in a compatible VPP program in the future.
Battery Installed
Manufacturer: FOXESS Co Ltd
Brand: FOX ESS
Series: EQ4800
Model: EQ4800-L9
Battery units: 9
Usable capacity: 41.93kWh
Nominal capacity: 41.93kWh
VPP compatible: Yes
FOX ESS H3-Smart 10kW Hybrid Inverter
The battery system was paired with a new FOX ESS H3-10.0-Smart hybrid inverter.
The 10kW inverter provides the control platform between the home’s energy generation, battery storage, household electrical demand and grid connection.
Because this was a completely new battery installation, a new inverter was installed specifically as part of the battery system rather than relying on an existing inverter.
Inverter Installed
Manufacturer: FOXESS Co Ltd
Series: H3-Smart
Model: H3-10.0-Smart
AC power: 10kW
Installation: New inverter installed for battery system
VPP compatible: Yes
Designed for Greater Energy Independence
Large-capacity home batteries allow households to retain more electricity for later use rather than immediately exporting excess energy to the grid.
For this Clyde property, the 41.93kWh battery capacity creates substantial room to store energy that can then be used when household demand increases.
Depending on the home’s solar generation and electricity consumption, battery storage can help homeowners:
- Store excess daytime solar generation
- Use stored electricity during evening periods
- Reduce dependence on electricity purchased from the grid
- Increase overall solar self-consumption
- Better manage household electricity usage
- Prepare the property for increasingly electrified household energy needs
- Take advantage of compatible smart-energy and VPP opportunities
Actual savings and battery performance vary between properties depending on solar generation, electricity usage, tariffs, weather conditions and system configuration.

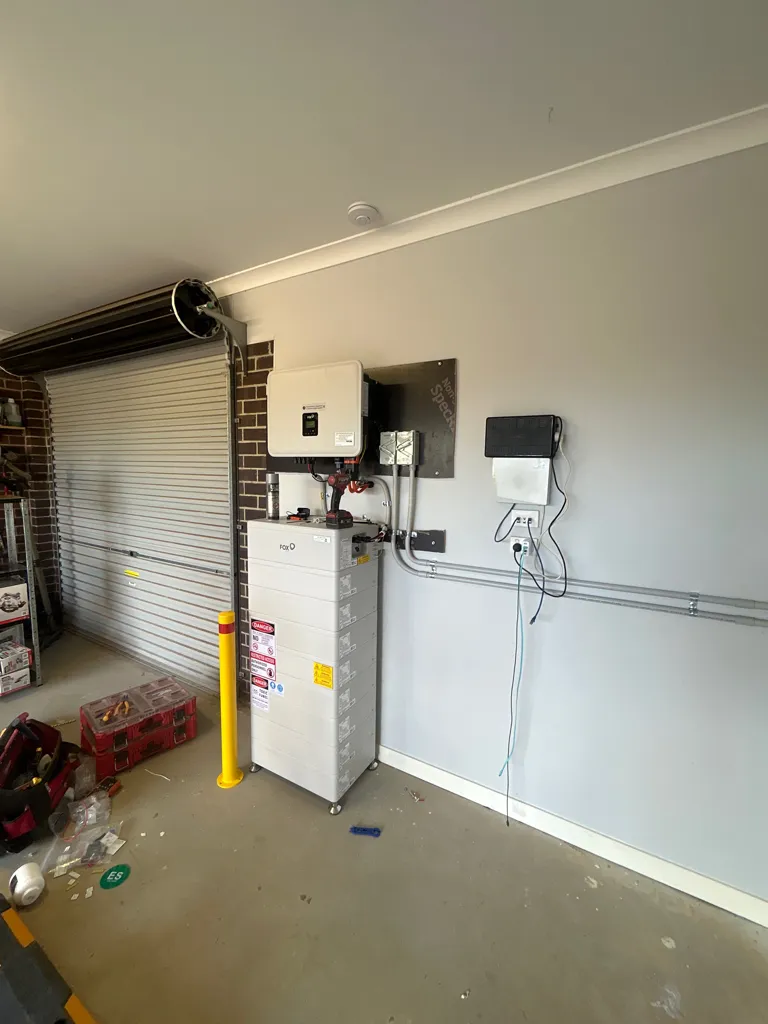

Indoor Battery Installation
The FOX ESS battery system for this project was installed indoors at the residential property.
Battery placement forms an important part of system design. The installation location must account for equipment requirements, available space, electrical infrastructure and applicable installation standards.
Our team planned the installation around the property’s existing layout to create a practical and professionally integrated battery setup.
On-Grid Residential Battery System
This project uses an on-grid battery configuration, allowing the battery and inverter to operate as part of the home’s wider electricity system while maintaining connection to the electricity network.
The system intelligently manages energy between the property, battery and grid according to the configured operating conditions.
Combining high-capacity storage with a modern hybrid inverter gives the homeowner greater flexibility in managing when stored energy is used.
VPP-Compatible Battery and Inverter
Both the FOX ESS battery and H3-Smart inverter selected for this Clyde installation are VPP compatible.
A Virtual Power Plant can connect compatible distributed battery systems through software, allowing participating batteries to interact with electricity-market or energy-network programs.
VPP participation depends on the electricity retailer, program availability, hardware compatibility and individual customer eligibility, but installing compatible equipment gives homeowners more options for the future.
Professional Battery Installation in Clyde
Every battery installation requires more than simply selecting equipment with a large capacity.
The battery, inverter, electrical infrastructure, available installation space, household consumption and existing solar system all need to work together correctly.
For this Clyde project, SolarAide delivered the installation as a complete residential battery solution, covering system planning, equipment selection, installation and commissioning.
The result is a 41.93kWh FOX ESS battery system designed to provide the household with substantially greater capacity to store and manage its energy.
Solar & Battery Installations Across Melbourne
SolarAide provides residential solar and battery installations throughout Clyde, Melbourne’s south-east and wider Victoria.
Our local team designs systems around the actual property rather than treating every home as though it came off the same spreadsheet.
Whether you are installing your first home battery, expanding an existing solar system or planning a larger solar-and-storage setup, we can assess your electricity usage, existing equipment and future requirements to recommend an appropriate solution.
Planning a Solar Battery Installation in Clyde?
If you’re considering battery storage for your home in Clyde or surrounding south-eastern Melbourne suburbs, SolarAide can help determine the battery capacity and system configuration that makes sense for your property.
Our team can assess your existing solar system, electricity usage, available installation space and energy goals before recommending suitable battery and inverter options.
Get a free SolarAide quote for your home battery installation in Clyde, Victoria.
